Products >> Off Grid Solar Inverter >>

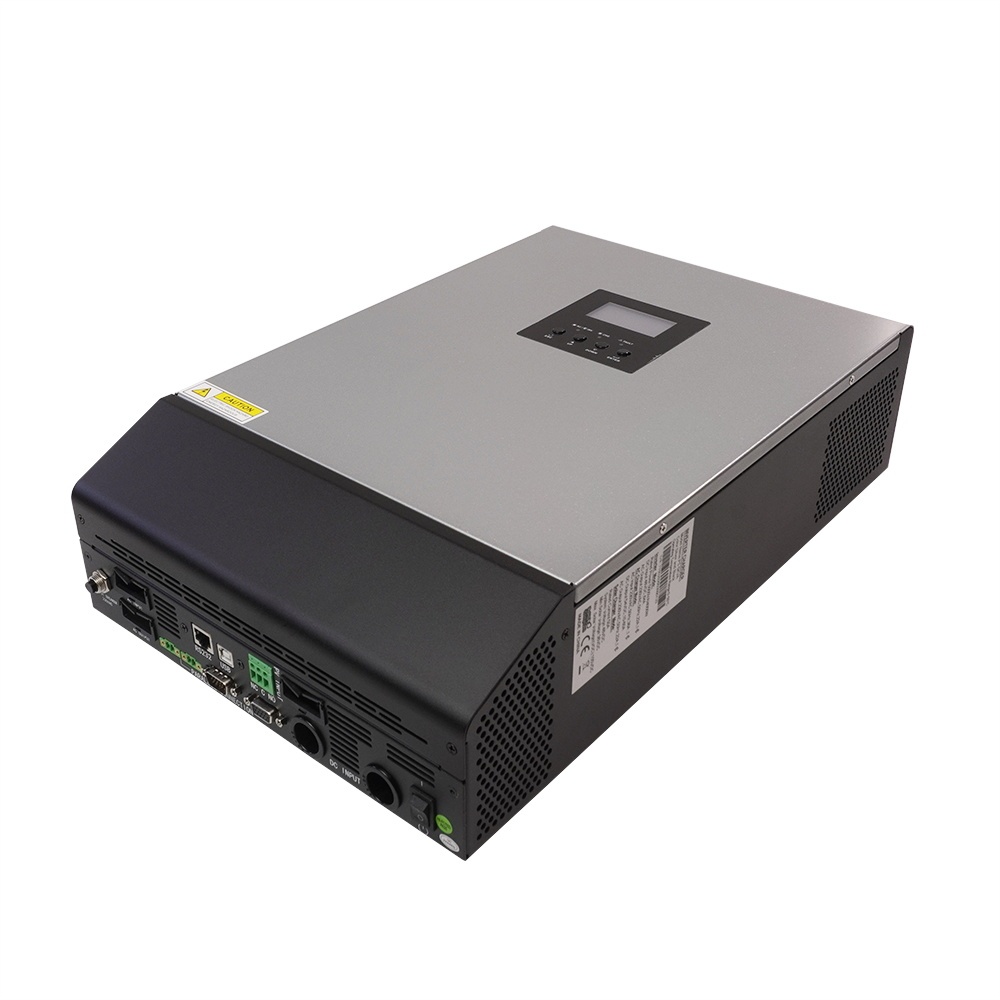

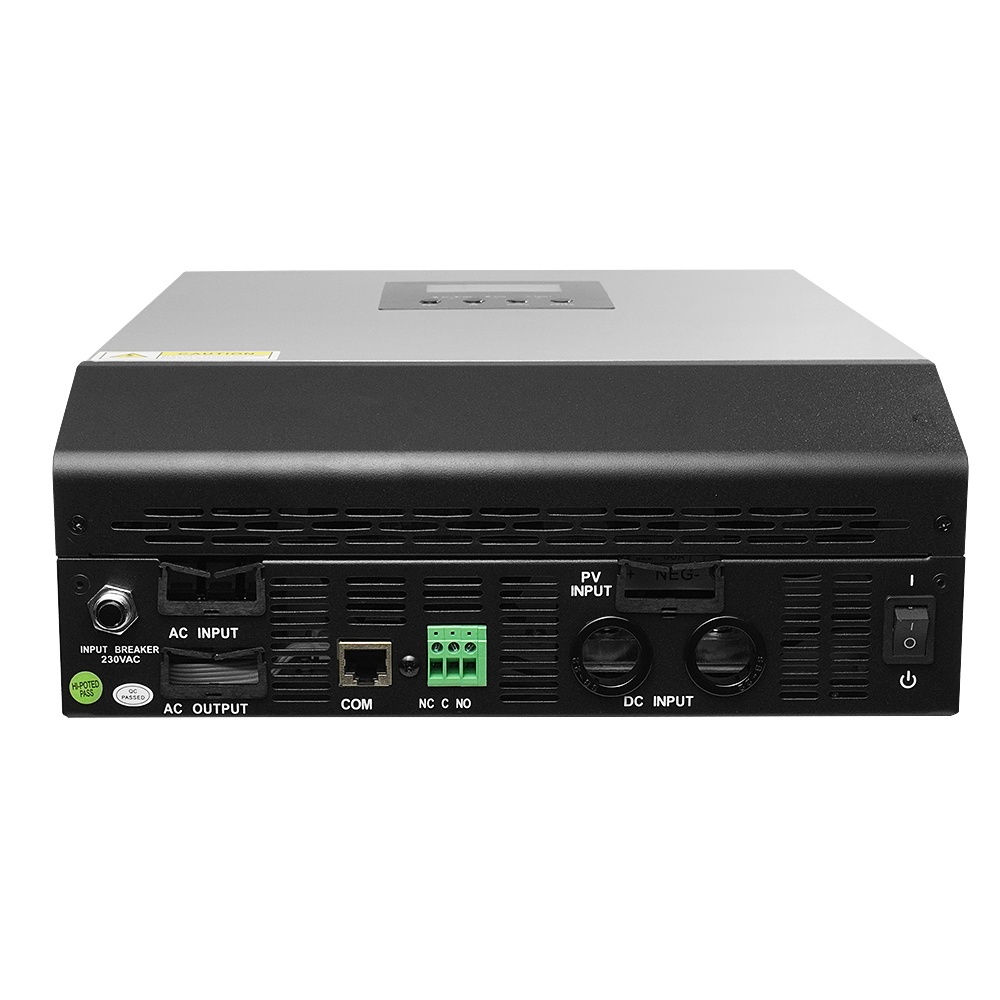

PS Hybrid 5KVA Solar Power Inverter/Charger Pure Sine Wave 48Vdc 230Vac+50A PWM Solar Charger
- Product No.：1
PS Series Hybrid Solar Inverter 1KVA/3KVA/5KVA With PWM Charger 50A
| Model | PS 1KVA | PS3KVA | PS3KW | PS5KVA |
| Rate Power | 800W | 2400W | 3000W | 4000W |
| INPUT | ||||
| Voltage | 230Vac | |||
| Phase&waveform | Single Phase & Pure Sine Wave | |||
| Voltage selectable range | 170~280 VAC(for Personal Computer);90~280 VAC(for home appliance) | |||
| Frequency | 50Hz/60Hz | |||
| OUTPUT | ||||
| AC voltage Regulation | 230V AC ± 5% | |||
| Surge Power | 2000VA | 6000VA | 10000VA | |
| Efficiency | 90% | 93% | ||
| Transfer time | 10ms(for personal computers); 20ms (for home appliances) | |||
| waveform | Pure Sine Wave | |||
| Battery& AC charger | ||||
| battery voltage | 12Vdc | 24Vdc | 48Vdc | |
| floating charge voltage | 13.5Vdc | 27Vdc | 54Vdc | |
| Overcharge Protection | 15Vdc | 31Vdc | 60Vdc | |
| maximum charge current | 10A or 20A | 20A or 30A | 60A | |
| PV Input | ||||
| Solar Charger Type | PWM | |||
| Max Solar Charger Current | 50A | |||
| Max PV Array Open Circuit Voltage | 50VDC | 70VDC | 85VDC | |
| Standy Powr Consumption | 2W | |||
| Physical | ||||
| Dimension, D×W×H (mm) | 95×240×316 | 100×272×355 | 120×295×468 | |
| Net Weight (Kgs) | 5 | 6.9 | 9.8 | |
| Environmental | ||||
| Humidity | 5%-95% relative humidity ( non-condensing) | |||
| Operation Temperature | 0℃-55℃ | |||
| Storage Temperature | (-)15~60℃ | |||
Key Features:
• Pure sine wave inverter
• Built-in PWM solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
•Parallel operation is only suitable for PS 5KVA
