1kva 2kva 3kva 4kva 5kva pure sine wave off grid hybrid dc ac inverter with inbuilt MPPT controller

Product No.：010
Online Inquiry

Product Description

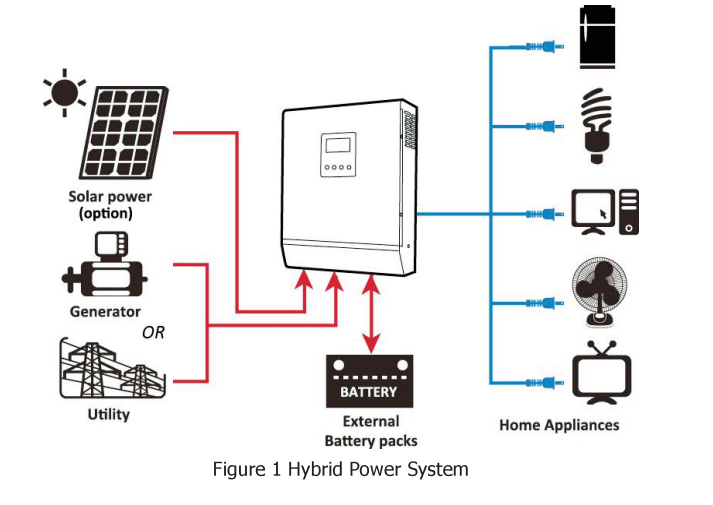

Features of 24V/48VDC solar power inverter

1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function

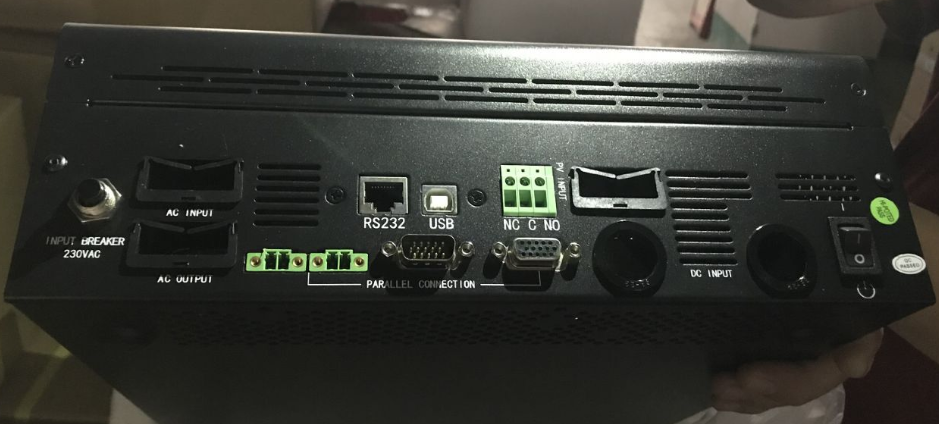

11.Parallel operation with up to 4 units only available for MKS 4K/5K

Product Parameters

Model No.		MPS 1K-24	MPS 3K-24		MPS 5K-48
Rated power		1000VA/800W	3000VA/2400W		5000VA/4000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (For home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power	2000VA	6000VA		10000VA
	efficiency (peak)	90%-93%	93%
	transfer time	10ms(for personal computers); 20ms (for home appliances)
	waveform	pure sine wave
Battery& AC charger	battery voltage	24VDC	24VDC		48VDC
	floating charge voltage	27VDC	27VDC		54VDC
	overcharge protection	31VDC	31VDC		60VDC
	maximum charge current	10A/20A	20A or 30A		10A/20A/30A/40A/50A/60A
	MAX PV array power	600W	600W	1500W	3000W	4000W
	MPPT range@ operating voltage	30-66VDC	30-66VDC	60-115VDC	60-115VDC
	maximum PV array open circuit voltage	75VDC	75VDC	145VDC	145VDC
	maximum charging current	25A	25A	60A	60A	80A
	maximum efficiency	98%
	standby power consumpsion	2W
Physical	Dimension, DWH(mm)	128x272x355		140x295x540
	Net weight (kgs)	7.4	8	10	11.05	13.5
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃
Model		MPS 1K-24	MPS 3K-24		MPS 5K-48
inverter power		800W	2400W		4000W
pmax generated from solar charger		25Amp,600W		25Amp,1500W	60Amp,3000W	80Amp,4000W
best panel configuration		500Wp (250Wp*2pcs)		1500Wp ( 250Wp*6pcs)	3000Wp (250Wp*12pcs)	4000Wp (250Wp*16pcs)
